Block Types and Block Options

Individual properties required for a specific type of block are placed in separate objects called Block Options (e.g., ImageOptions). It is not always necessary to specify this object if default values are sufficient.

The following sections describe properties for specific block options.


BlockType: image BlockOptions: ImageOptions

Used to display an image.

Property	Type	Description
Path	string	Specifies the data object or path to the image file (.png, .jpg, .jpeg).
DefaultPath	string	Used if retrieving an image from Path fails.
HorizontalAlignment	enum	Options: Left, Center, Right.
VerticalAlignment	enum	Options: Top, Center, Bottom.
Opacity	int	Opacity level.
Rotation	int	Rotates the image clockwise around its center. Supports values beyond -360/360.
RotateAroundCenter	bool	If true, rotates the image around its center. Defaults to false.

Path Specification

The Path property (or Source property of the block) can be specified as:

Relative path: e.g., separators/separator_red.png. Specifies the full path relative to the images folder in the theme root (or layout/layer).

Text

BlockType: text BlockOptions: TextOptions

Used to display text.

Property	Type	Description
Text	string	The text content to display.
FontName	string	Font family. Defaults to global variable FontNameDefault if empty.
FontSize	int	Font size. Defaults to global variable FontSizeDefault if empty.
FontStyle	enum	Options: Regular, Bold, Italic, BoldItalic. (Experimental).
Foreground	color	Text color. Defaults to global variable ForegroundDefault if empty.
TextAlignment	enum	Options: Start, End, Center. (Experimental).
HorizontalAlignment	enum	Options: Left, Center, Right.
VerticalAlignment	enum	Options: Top, Center, Bottom.
LineSpacing	int	Spacing between lines.
Wrap	bool	Enables text wrapping. (Experimental). To make the text wrap, it may need to force the width of the text block. Dev in progress.
Rotation	int	Rotates text clockwise around its center.
RotateAroundCenter	bool	If true, rotates the text around its center. Defaults to false.
ColorizeRating	ColorizeRatingOptions	Sets foreground color based on rating value.

ColorizeRatingOptions

Property	Type	Description
IsEnabled	bool	Enables or disables the block.
Level	int	Value (0-100) determining the color.
GradientStops	List<GradientStop>	List of gradient stops for custom color assignment. If not specified, default values are used.

GradientStop

Property	Type	Description
Color	color	Specific color override.
Offset	int	Offset value (0-100).

Stack and Dock

BlockTypes: stack, dock BlockOptions: PanelOptions

Container blocks that arrange nested blocks.

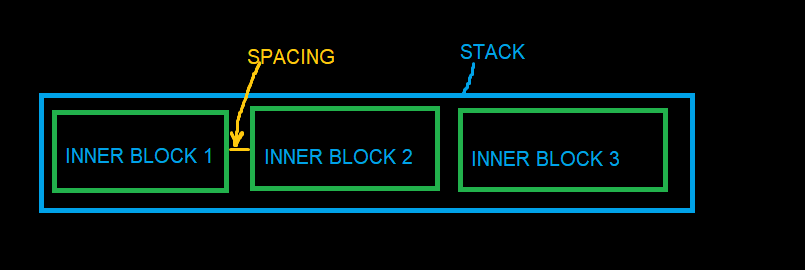

Stack

Arranges nested (inner) blocks sequentially.

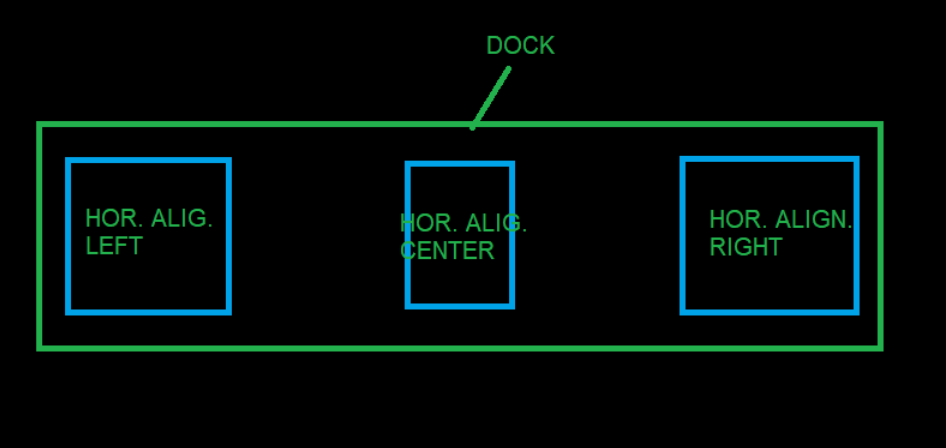

Dock

Similar to Stack, with the following differences:

• By default, it fills all available space (StretchWidth or StretchHeight is true, depending on Orientation).
• If inner blocks specify alignment, Dock uses this to dock them to the sides.
• Only one inner block can specify center alignment.

PanelOptions Properties

Property	Type	Description
Orientation	enum	Options: Horizontal, Vertical.
HorizontalDirection	enum	Options: LeftToRight, RightToLeft.
VerticalDirection	enum	Options: TopToBottom, BottomToTop.
Spacing	int	Spacing in pixels between inner blocks.

ItemStack

BlockType: itemstack BlockOptions: ItemStackOptions, PanelOptions

Similar to Stack, but inner blocks are generated automatically based on a data collection. The Items property is ignored.

Blocks within the ItemTemplate have access to the Item and ItemIndex expressions. If the ItemStack is nested within another iteration, they also have access to ParentItem and ParentItemIndex.

Property	Type	Description
ItemSource	string	Data access expression for the collection/list.
ItemTemplate	block	Template for inner blocks.
SortMember	string	Property name for sorting the collection. Can be data access expression.
OrderBy	string	Property name for sorting (supports OrderBy2, OrderBy3).
OrderByDescending	string	Property name for descending sort (supports OrderByDescending2, 3).
FilterMember	string	Property name for filtering the collection. Can be data access expression.
FilterMemberValue	string	Value to filter by.
ExcludeFilterMember	string	Property name. Removes items whose value of this property equals ExcludeFilterMemberValue, for example drivers with 0 in a ranking. Applied after sorting and before IndexStart and Limit. Added in 0.9.9.
ExcludeFilterMemberValue	string	Value to exclude. When omitted, items with an empty or missing value are removed. Added in 0.9.9.
DistinctMember	string	Property name. Keeps the first item for each distinct value (case-insensitive). Supports nested paths such as CarClass.Name. Null and empty values count as one value. Added in 0.9.9.
Reverse	bool	Reverses the collection order.
Limit	int	Limits the number of items.
IndexStart	int	Starting index of the collection.
IndexEnd	int	Ending index of the collection.
TakeItemIndex	int	Selects a single item by index (will be consist only of one item by specified index).
TakeItemsFirst	int	Selects the first N items.
TakeItemsLast	int	Selects the last N items.
CollectionPart	string	Specifies a part of the collection (e.g., "1/3" for the first third).

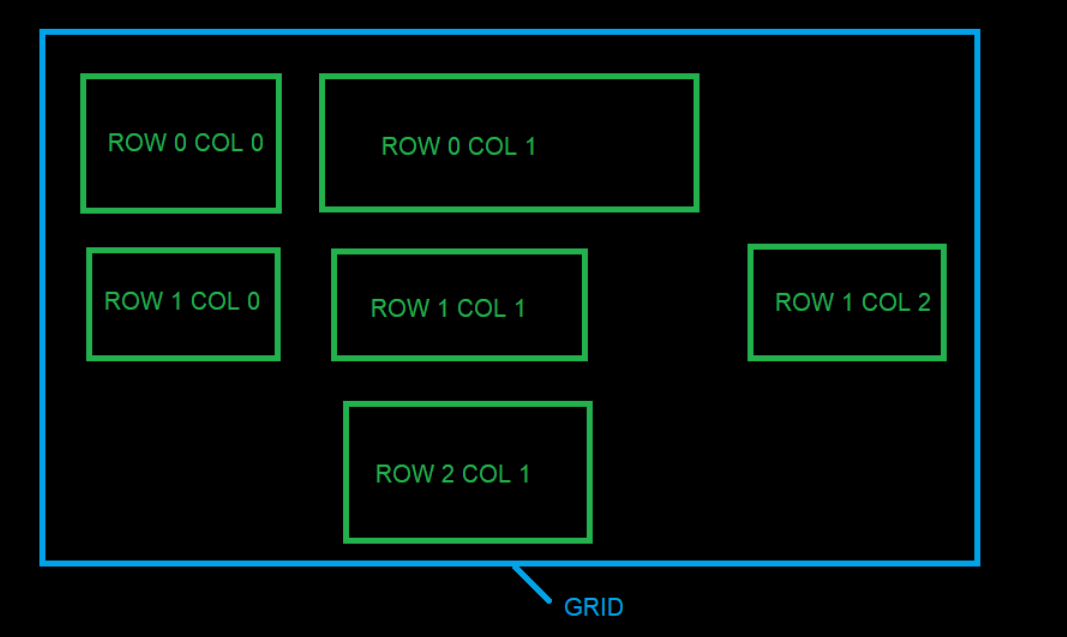

Grid

BlockType: grid BlockOptions: GridOptions

Container for arranging inner blocks in a grid.

The Grid calculates column widths and row heights based on inner block dimensions. Use GridCol and GridRow properties on inner blocks to place them. Only one block per cell.

Property	Type	Description
Rows	List<GridRowDefinition>	Definitions for grid rows.
Cols	List<GridColDefinition>	Definitions for grid columns.

GridRowDefinition

Property	Type	Description
Height	int	Height of the row.
IsStretchHeight	bool	If true, fills available vertical space (only one row can be true).

GridColDefinition

Property	Type	Description
Width	int	Width of the column.
IsStretchWidth	bool	If true, fills available horizontal space (only one column can be true).

Canvas

BlockType: canvas BlockOptions: CanvasOptions

A container that arranges inner blocks manually. Each inner block must define PositionX and PositionY to indicate its top-left coordinate, or PlotPosition to sit at a data point of a chart (see Block). CanvasOptions currently contains no properties.

A canvas also accepts ItemStackOptions (same properties as ItemStack). The ItemTemplate is then repeated for every item of the collection, and all copies are drawn at the same place, one over another. This is how one chart line per driver is drawn on a single chart. Static Items are drawn first, the generated copies on top. Added in 0.9.9.

Table

BlockType: table BlockOptions: TableOptions

Generates blocks as a table based on a collection/list. The Items property is not used.

Blocks within column templates have access to the Item, ItemIndex, and ColumnIndex expressions. If the Table is nested within another iteration, they also have access to ParentItem and ParentItemIndex.

Property	Type	Description
ItemsSource	string	Data access expression for the collection/list.
HeaderTemplate	block	Template for table headers.
HeaderHeight	int	Height of the header row.
RowHeight	int	Height of data rows.
RowCount	int	Number of rows.
ColSpacing	int	Spacing between columns.
RowSpacing	int	Spacing between rows.
SeparatorSpace	int	Additional space if a column is a separator.
GroupSpaceReduction	int	Space reduction between columns with the same GroupId.
Columns	List<TableColumnDefinition>	Definitions for table columns.

Note: Sorting and filtering properties (SortMember, FilterMember, DistinctMember, etc.) are identical to ItemStack.

TableColumnDefinition

Property	Type	Description
Width	int	Width of the column.
MarginLeft	int	Left margin.
MarginRight	int	Right margin.
IsStretchWidth	bool	If true, fills available horizontal space.
Header	string	Text for the header template (will be replace text property of any text block of header template).
RenderIf	bool	Conditional rendering flag.
Template	block	Template for each item in the column.
IsSeparator	bool	Indicates if the column is a separator.
GroupId	int	Groups columns to adjust spacing (same group Id (>0) can be set for several column to bring them closer to each other in the column space).
MultiColumnHeadersSource	string	Data expression (only for collection/list) for multicolumn headers.
MultiColumnItemsSource	string	Data expression (only for collection/list) for multicolumn items.
MultiColumnHeaderTemplate	block	Template for multicolumn items.
MultiColumnLimit	int	Maximum number of items to display in multicolumn.
MultiColumnIndexStart	int	Start index for multicolumn items.
MultiColumnIndexEnd	int	End index for multicolumn items.

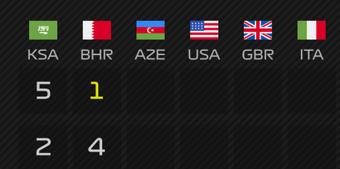

Multicolumn

A feature for expanding one column into multiple columns.

Shape

BlockType: shape BlockOptions: ShapeOptions

Displays a simple geometric figure, a line, or a chart line built from data.

Property	Type	Description
ShapeType	enum	Options: rectangle, ellipse, line, polyline. line and polyline added in 0.9.9.
Fill	color	Fill color of rectangle and ellipse.
Rotation	int	Rotates the shape clockwise around its center.
RotateAroundCenter	bool	If true, rotates the shape around its center. Defaults to false.
Stroke	StrokeOptions	Outline of rectangle and ellipse, the line itself for line and polyline. Added in 0.9.9.
X1, Y1, X2, Y2	number	line: start and end point, in pixels of the block or in data units when Scale is set. rectangle and ellipse with Scale: the data range the shape covers (bars, bands). Nothing is drawn when a value is missing. Added in 0.9.9.
GapX, GapY	number	rectangle and ellipse with Scale: pixels left empty between neighbouring bars. The shape shrinks by half of the gap on each side. Added in 0.9.9.
Points	string	polyline: data access expression for the collection of points, for example {Item.LapPositions}. Added in 0.9.9.
PointX	string	polyline: point property holding X. Defaults to X. The item index is used when the value is missing. Added in 0.9.9.
PointY	string	polyline: point property holding Y. Defaults to Y. An empty value is a missing point. Added in 0.9.9.
MissingData	enum	polyline: break (default) splits the line at a missing point, connect joins its neighbours. Added in 0.9.9.
Smoothing	enum	polyline: none (default) or curve (smooth curve through every point). Added in 0.9.9.
Markers	MarkerOptions	polyline: marks drawn on every point. Added in 0.9.9.
Scale	ScaleOptions	Maps data values onto the block. Without it line uses pixels and polyline fits its own data. Added in 0.9.9.

StrokeOptions

Property	Type	Description
Color	color	Line color. Defaults to white.
Thickness	number	Line thickness in pixels. Defaults to 1.
Opacity	number	0 to 1, multiplied with the color alpha. Defaults to 1.
DashStyle	enum	solid (default), dash, dot, dashdot, dashdotdot.
DashPattern	string	Custom dash pattern in line thicknesses, for example "6,2,1,2". Overrides DashStyle.
LineCap	enum	Line ends: butt (default), round, square.
LineJoin	enum	Line corners: miter (default), round, bevel.

ScaleOptions

The plotted area is the block minus Inset on every side. A data value is placed proportionally between the minimum and the maximum.

Property	Type	Description
XMin, XMax	number	X range. Defaults to the range of the data of the shape.
YMin, YMax	number	Y range. Defaults to the range of the data of the shape.
InvertY	bool	If true, the smallest Y is at the top (for example position 1 on a lap chart). Defaults to false: the smallest Y is at the bottom.
Inset	number	Pixels between the block edge and the plotted area. Defaults to half the stroke plus the marker size for lines, 0 for bars and PlotPosition. Set the same value on stacked chart layers so that their scales line up.
BandX, BandY	bool	Category axis: every whole value from min to max gets its own slot. Points and labels sit in the slot center. A bar with X1 = X2 = i fills slot i.

MarkerOptions

Property	Type	Description
Shape	enum	ellipse (default) or rectangle.
Size	number	Marker size in pixels. Defaults to 6.
Fill	color	Marker fill. Defaults to the line color.
Stroke	StrokeOptions	Marker outline.

Charts

A chart is a canvas with several layers of the same size. Shapes with the same Width, Height and Scale are drawn over each other, so their data coordinates match. Labels use PlotPosition with the same scale and area size. The default theme layout session_results_race_lapchart is a complete example.

A position chart, one line per driver in the team color:

{
  "BlockType": "canvas",
  "ItemStackOptions": {
    "ItemSource": "{Session.Drivers}",
    "Reverse": true,
    "ItemTemplate": {
      "BlockType": "shape",
      "Width": 1400,
      "Height": 720,
      "ShapeOptions": {
        "ShapeType": "polyline",
        "Points": "{Item.LapPositions}",
        "PointX": "Lap",
        "PointY": "Position",
        "Scale": { "XMin": 0, "XMax": "{Session.LeaderLapsCount}", "YMin": 1, "YMax": "{Session.DriversCount}", "InvertY": true, "Inset": 18 },
        "Stroke": { "Color": "{Item.Team.Color}", "Thickness": 4, "LineJoin": "round" }
      }
    }
  }
}

A bar chart of race points with a value label above each bar:

{
  "BlockType": "canvas",
  "ItemStackOptions": {
    "ItemSource": "{Session.Drivers}",
    "ItemTemplate": {
      "BlockType": "canvas",
      "Items": [
        {
          "BlockType": "shape",
          "Width": 900,
          "Height": 200,
          "ShapeOptions": {
            "ShapeType": "rectangle",
            "X1": "{ItemIndex}",
            "X2": "{ItemIndex}",
            "Y1": 0,
            "Y2": "{Item.DriverPoints.FloatValue}",
            "GapX": 8,
            "Fill": "{Item.Team.Color}",
            "Scale": { "XMin": 0, "XMax": "{Session.DriversCount, Converter=NumberSubtract, Parameter=1}", "YMin": 0, "YMax": 30, "BandX": true }
          }
        },
        {
          "BlockType": "text",
          "Source": "{Item.DriverPoints.Value}",
          "PlotPosition": {
            "X": "{ItemIndex}",
            "Y": "{Item.DriverPoints.FloatValue}",
            "AreaWidth": 900,
            "AreaHeight": 200,
            "AnchorY": "Bottom",
            "OffsetY": -4,
            "Scale": { "XMin": 0, "XMax": "{Session.DriversCount, Converter=NumberSubtract, Parameter=1}", "YMin": 0, "YMax": 30, "BandX": true }
          }
        }
      ]
    }
  }
}

Component

BlockType: component BlockOptions: ComponentOptions

Used to reuse complex blocks across different places in a layer or layout.

Property	Type	Description
Vars	Dictionary<string, object>	Variables passed to the component.

ColorizeOptions

BlockOptions: ColorizeOptions

Describes how the background or final image of a block should be colored or masked.

Property	Type	Description
Enabled	bool	Enables colorization.
Color	color	Target color (used if ColorImage is not specified).
ColorImage	string	Relative path to a PNG image to be used as a color overlay or a layer mask.
ColorImageMode	enum	How the ColorImage is applied. Options: Alpha (draws image over source), Luminance (uses image as a Photoshop-like layer mask). Default: Luminance.
BlendPercentage	int	Intensity of the effect (0-100). For Luminance masks, it controls how much the mask affects the original alpha.
AlphaCompositionMode	enum	Composition mode. Possible values: SrcOver, Src, SrcAtop, SrcIn, SrcOut, Dest, DestAtop, DestOver, DestIn, DestOut, Clear, Xor. Default: SrcAtop.
ColorBlendingMode	enum	Blending mode. Possible values: Normal, Multiply, Add, Subtract, Screen, Darken, Lighten, Overlay, HardLight. Default: Screen.

Layer Mask Behavior (Luminance Mode)

When ColorImageMode is set to Luminance, the ColorImage acts as a Layer Mask: - The mask is automatically resized to match the source block dimensions. - Transparent areas in the mask are treated as black (fully transparent for the source). - Bright/White areas in the mask keep the source image opaque. - Dark/Black areas in the mask make the source image transparent. - The mask uses both the RGB luminance and the Alpha channel of the ColorImage to determine the final transparency, allowing for smooth gradients even with transparent PNGs.
